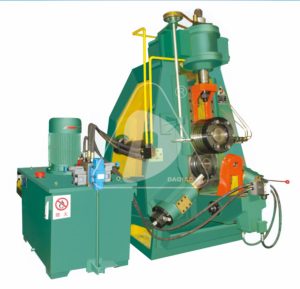

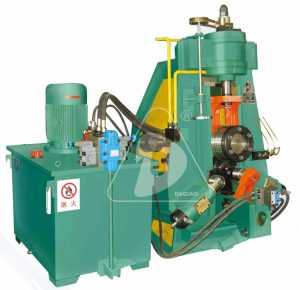

D51Y vertical Hydraulic ring rolling mill specification：
| Item | Unit | D51Y-160E | D51Y-250E | D51Y-350E | D51Y-400E | D51Y-500E | D51Y-630E | D51Y-800E | D51Y-1000E | D51Y-1000F | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| The ring size | Max Od | mm | 200 | 300 | 350 | 400 | 500 | 630 | 800 | 1000 | 1500 |
| Max Height | mm | 70 | 120 | 200 | 200 | 200 | 200/250 | 200/350 | 200/350 | 350/450 | |
| Max.Productivity | PCs/h | 600 | 240 | 120 | 90 | 90 | 80 | 60 | 50 | 40 | |
| Max.stroke of sliding block | mm | 70 | 110 | 130/250 | 130/250 | 130/250 | 200-350 | 200-350 | 200/350 | 200/350 | |
| Roller Linear Velocity | m/sec | 1.64 | 1.63 | 1.45 | 1.5 | 1.5 | 1.47 | 1.5 | 1.5 | 1.5 | |
| Speed of main shaft | r.p.m | 92 | 62.3 | 41 | 40 | 40 | 38 | 38 | 38 | 38 | |
| OD of rolling wheel | mm | 360～380 | 500~520 | 680～700 | 700～720 | 700～720 | 700～720 | 720～820 | 760～820 | 820 | |
| Oil cylinder Hydraulic pressure | mpa | 4 | 5 | 6 | 64 | 6 | 6 | 8 | 10 | 12 | |
| Center height of rolling roller | mm | 670 | 875 | 1100 | 1200 | 1200 | 1200 | 1350 | 1600 | 1780 | |
| Min. distance between rolling wheel center and rolling roller enter | mm | 185 | 265 | 365 | 375 | 375 | 375 | 410 | 410 | 415 | |
| Main motor power | kw | 30 | 55 | 90 | 90 | 90 | 90 | 110/132 | 110/132 | 132/160 | |
| Hydraulic motor power | kw | 7.5 | 11 | 15 | 15 | 15 | 15 | 15/18 | 15/18 | 15/18 | |
| Overall dimension | mm | 2350×1700 ×2100 | 3440×2000 ×2700 | 4595×2050 ×3370 | 4800×2200 ×3470 | 4800×2200 ×3470 | 4800×2200 ×3470 | 4800×2350 ×3770 | 5000×2400 ×3520 | 5500×2700 ×4200 | |
| Total weight | kg | 3500 | 7800 | 13800 | 14500 | 14500 | 14500 | 25000 | 25000 | 26000 | |
