Detailed Analysis on Open Die and Closed Die Forging Processes

Forging, an ancient technique rooted in human ingenuity, continues to be a fundamental component of modern manufacturing. Primarily, there are two forging techniques that dominate the industry, namely open die forging and closed die forging. Distinguishing these two methods is essential for any stakeholder in the manufacturing realm, as each brings unique benefits to the table. The purpose of this article is to delve into the specifics of each process, highlighting differences, advantages, and potential applications.

Open Die Forging: An Overview

Open die forging, as the name implies, is a method where a metal piece isn’t entirely encased but formed through successive hammering or pressing, shaping the material into the desired specifications. This technique is particularly adept at manufacturing large, custom parts like shafts, cylinders, and discs. The working temperature range for the metal parts during this process is between 1900°F to 2250°F.

Open die forging offers a plethora of advantages such as improved fatigue resistance, consistent grain flow, extended part life, increased toughness, reduced chances of voids, and finer grain size. These benefits render a highly durable final product, which solidifies the method’s importance in various industries.

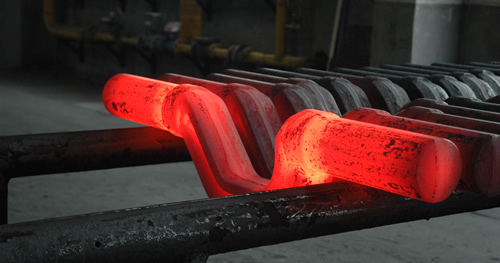

Closed Die Forging: A Deeper Insight

Alternatively, closed die forging, also known as impression die forging, employs a high-pressure environment to change the dimensions of the metal piece, which is placed between multiple dies. Its finessing capability makes it ideal for the creation of smaller, repetitive parts like gears, bolts, and connecting rods.

The enhanced attributes provided by closed die forging include exact dimensions, superior mechanical properties, refined surface finish, the capability to reproduce any shape or size with precision, and reduced or eliminated need for machining– making it cost-effective for large production runs.

Choosing the Right Forging Technique

The choice between open die and closed die forging depends on factors including the part’s complexity, production volume, and the tolerances required. A simple part is likely to be more economically produced using open die forging, while complex parts necessitate the employment of closed die forging.

When it comes to production volume, closed die forging scores high marks for its efficiency in high-volume production runs. On the other hand, open die forging shines in the production of lower volume or custom orders.

Tolerance requirements also play a critical role in the choice of the forging method. Closed die forging delivers tighter tolerances and a smoother surface finish, and if these attributes are not essential, open die forging could be the more economical option.

So we can know, both open die and closed die forging have distinct benefits, processes, and applications. Choosing the most suitable method depends on the unique requirements of the intended project. It’s an informed and crucial decision that can drastically affect both the quality and cost of a finished product.
